FINISHING, CUTTING AND PACKAGING
CHIORINO wide offer meets belt demand for any kind of application:
If required, CHIORINO supplies belts with high precision perforations in any size.
CHIORINO supplies first equipment belts to the leading manufacturer of industrial laundries. The wide range of CHIORINO belts satisfy all the requirements for belts with textile carcass and for FAST JOINT elastic belts which ensure an easy and quick installation on site.

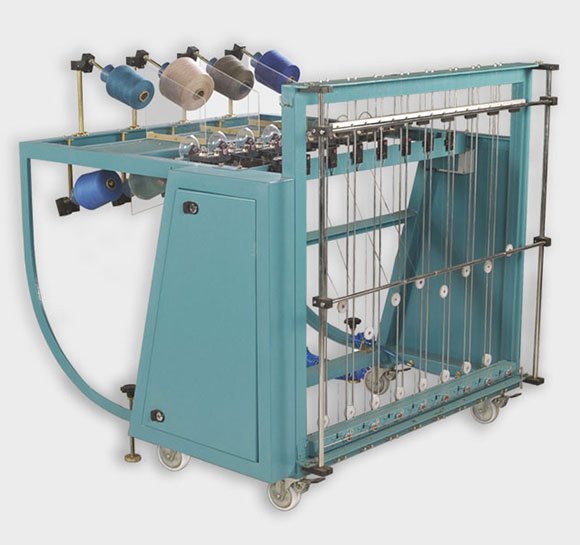

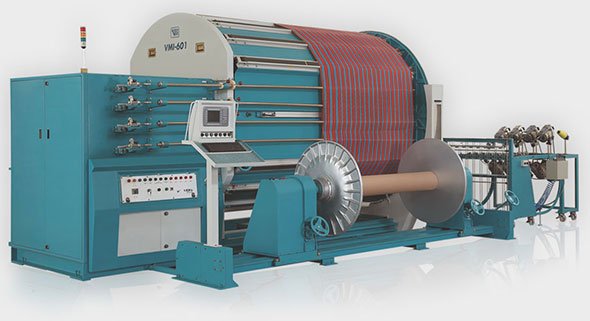

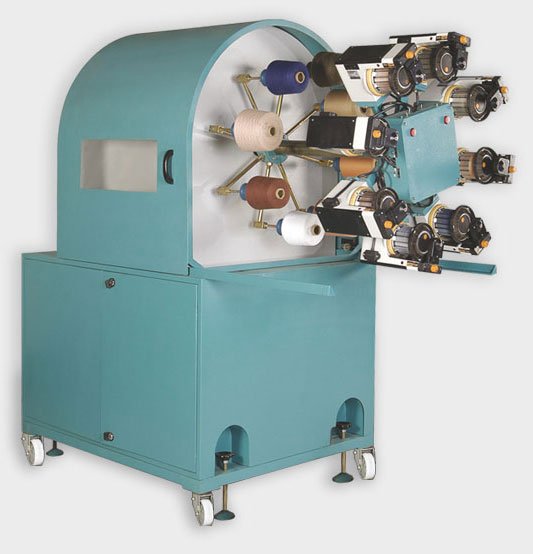

Up to a maximum of 8 different colours of warp can be used. User friendly and programmable. Various pattern selection. Specially developed sensor does not allow miss or double ends. Option of thread accumulator available with 8 cone holder frame.
Pre programmable warp pattern for unlimited varieties of patterns. Precise response control for thread pick up and thread change speed by a compact digital A.C. drive, synchronized with pre programmable thread feeder pneumatic element. Thread movement through a precise engineering conveyor belt driven advanced motion control.
Up to maximum 8 ends can be placed which implies up to maximum 8 threads being warped or wound at the same time. This increases the warping efficiency significantly. The creel is precisely synchronized by a variable frequency digital A.C. drive and quick response thread accumulator.

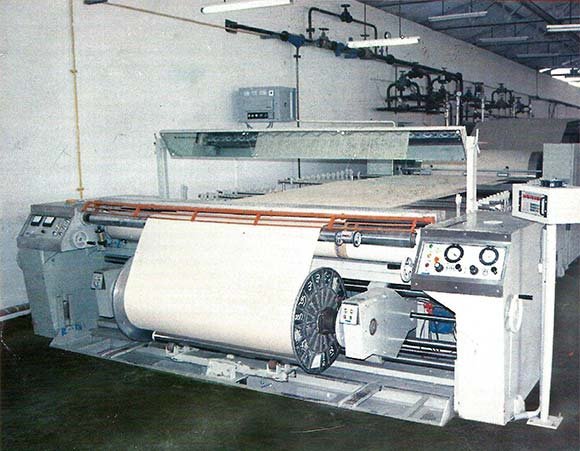

RBE MULTI CYLINDER SIZING MACHINE
RBE High Speed Multi Cylinder Sizing machine, an ultra modern machine is the result of our wide experience in the field of sizing and of technological innovation. Designed to produce high quality sized beam at reduced cost to achieve highest weaving efficiency. Designed to suit the modern concept of shuttle less weaving by means of innovative & ingenious technology. Automatic & computerized controls, set new standards for perfect synchronization of sizing parameters. The system is designed to meet specific customer requirements to achieve optimum sizing performance irrespective of the type of yarn such as cotton, synthetic and blended, spun yarn, filament including zero-twist and texturised yarn and yarns for weaving terry fabric.
Sturdy & composite design enables vibration free and efficient beaming of all types of yarn under uniform tension even at higher Speed.
Single beam or double beam mounting. Strong beam carriage with multiple shaft traverse. Motorized/manual traverse arrangement. Motorised beam donning & doffing for various beam width.
Rubber coated delivery roll with double nip arrangement. Individual pneumatic loading & lifting arrangement for nip roll.
Vertical striking comb with pitch & width adjustment, built in oscillation provided to reduce dent abrasion.
Pneumatic / hydraulic beam pressing device with double roll arrangement.
Elegant and conveniently located electrical and pneumatic control panel.
Traverse roll for producing high quality pile beams for terry fabric weaving.
Custom built to suit weavers beams of various diameters & working widths.
Wide tension range with programmable uniform beam tension control.
Multi point A.C. frequency controlled drive with PLC based auto tension control for dry zone-wet zone-positive feed zone.
Dual point hyperbolic D.C. drive with VSP tensioning arrangement for controlling tension /stretch in dry-wet zone-positive feed zone.
Heavy duty structural frame.
Split drying arrangement like Syncro-2, Syncro-4 (Horizontal/ Vertical) with multiple size boxes.
Drying cylinders made of stainless steel with reverse dished ends. Teflon coated cylinders for initial drying.
Individual steam traps for efficient removal of condensate. Large individual steam rotary joints with Siphon pipe. Flexible copper tubes for steam and condensate removal.
Positively driven drying cylinders. Slip clutch drive to drying cylinders in initial drying zone to compensate for yarn shrinkage.
Temperature controller in group / individual for drying cylinders.
Pre-dryers for semi-wet dyed warp Beams.
Size boxes with single/multiple dips & multiple squeezes.
Stainless steel size vat with direct / indirect heating, designed, to provide better circulation of size regardless of speed and assure equal heat distribution.
Bottom rolls-stainless steel cladded size rolls. ‘Size RoK’ rubberised bottom size rolls.
Top squeeze rolls- anti deflection type rolls and solid rolls with Nitrile / Dayton / Red-rider synthetic rubber covers.
Pneumatic squeeze pressure control by programmable, automatic step less pressure change with respect to Speed. Individual rolls provided with pneumatic loading / lifting arrangement.
Immersion cum squeeze type rubberized immersion Roll.
Positive dry feed attachment with Safety clutch.
Electronic size level controller, over-flow tank with gear pump, temperature control unit.
Squeeze pressure upto 3000 Kg for specific customer requirement.
Rigid & heavy structural frame. Horizontal/ vertical / zig zag type creel frames. Beam brackets double roll type, telescopic.
Pneumatic creel beam brakes. Uniform web tension control for (individual / groups) warper beams.
Magazine movable creel for specific customer requirement.
CHIORINO polyurethane belts are the ideal solution for OEMs and end users demanding the best performance printing of any kind of fabric. CHIORINO belts offer the highest precision in any type of machine:
CHIORINO polyurethane belts for nonwoven production are developed in close co-operation with OEMs and end users and meet the increasingly growing demands for light-weighted, fast and mechanically performing machines:
HT/HP Vertical Yarn Dyeing Machines have become the first choice of yarn dyeing industry. Our Machines are designed with latest technology in which you can achieve better results as well as saving time and energy. The High flexibility and compatibility design features make the machine suitable for Dyeing Cotton, Nylon, Polyester, Acrylic, Silk, Viscose etc. In Package Form and Dyeing Fiber, Cotton, Wool, Artificial Silk, Muffs, Tapes, Hair, Ropes, Satin etc.. In loose forms by using suitable carriers. Our Dyeing Machines which can be run in fully flooded mode with the help of high pressure liquor circulation pump to maintain 4kg / cm2 to 5Kg / cm2 pressure, Depending the nature of material & loading parameters.
RK Tex Dyeing Machines are designed to operate under air pad mode, where the pressurization is realized through the generation of an air cushion in the upper part of the kier the value, with the following technological advantages. The air is never in contact with the yarn so the problem of hydrolysis can be eliminated. Air pad pressurization permits to inject dyestuffs and chemicals direct into main liquor Circuit, thereby saving Dyes, Chemicals, Thermal Energy, and Water with low as material to Liquor Ratio 1:4 to 1:6.
Dyeing Machines are fabricated from the best quality of corrosion resistant Stainless Steel, SS 316Ti / SS 316L grade for all major wetted parts. All Pressure parts and components are designed, manufactured and inspected according to the maximum working temperature of 140°c & Maximum working pressure 5.5kg /cm2.
Automatic / Semi Automatic Spray Dyeing Machine (Hank Dyeing Machine) This Model Dyeing Machine has been specially designed for dyeing of yarns in Hank from including wool, soft mercerized Cotton, Viscose, Ploymide, Silk and high bull acrylics. RK Tex is designed to dye at temperature of up to 980 and starting liquor ratio 1:4 depending on the loading factor and nature of yarn.
We manufacture and supply technically advanced range of Fiber Carriers, can be dye cotton, polyester, viscose, nylon in hanks form and also dye fiber wool, artificial silk, muffs, tapes, ropes, zips, satin, etc… in loose form. Our entire product range is acclaimed for easy installation and minimum maintenance. These products are utilized in varied textile firms. Our entire product range is energy efficient in nature and is well-configured with advanced technologies and methods.
